Spectra Physics Vanguard Laser serviced by Laser Innovations.

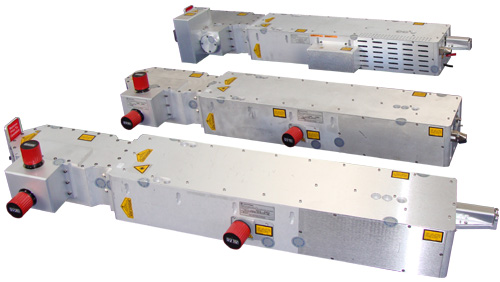

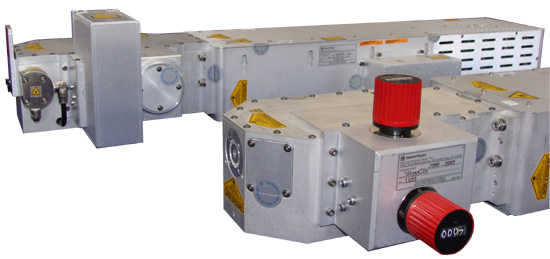

Spectra Physics Vanguard Laser System
Spectra Physics Vanguard Laser

Laser Innovations offers sales, service and support for your Spectra Physics Vanguard Laser System.  We service 355nm Vanguard Laser Systems.








Spectra Physics Vanguard Laser serviced by Laser Innovations.












Specifications


     SPECTRA PHYSICS VANGUARD LASER
  350 mW 1000 mW 2.5 W
Wavelength 355 nm
Output Power 350 mW 1000 mW 2500 mW
Output Power Stability1, average < 2%

Pulse
Repetition Rate 80 ± 2 MHz
Pulse Width, interpolated < 12 ps < 12 ps

Beam
M2 < 1.3
Far Field Divergence, full angle < 1 mrad
Pointing Stability < 25 µrad/°C
Polarization Ratio 100:1  Vertical
Diameter (1/e²), nominal 1.0 mm
Ellipticity < 20% far field
Amplitude Noise <1% rms (10 Hz to 2 MHz)
Spatial Mode TEM00

Operating Conditions
Warm-up time, cold start (typical)
   Off to full Power
   Off to Full Specs

< 30 min.
< 60 min.
Ambient Temperature +20°C to +27°C +21°C to +25°C, mean
< ± 2.5°C variation from
mean w/chiller

Electrical Properties
Voltage 100 to 240 VAC ±10%, 50-60 Hz
Power Consumption < 1000 W (500 W typical)


   1  Percentage drift in any 2-hour  period with less than ± 2% temperature drift.

Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.
